Multifunctional Steering Top Column Module

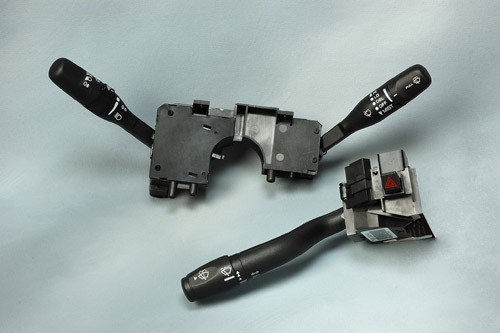

This multifunctional lever is used within an automotive steering column application. Careful design and details needed to be coordinated for a part with this many primary functions. This Class A surface part included a full pad printing operation, marking all functions of the lever stalk, and then individually cell packed.

Click Here  to view the part in our video.

For more information on our capabilities and expertise on Top Column Modules and other automotive parts, contact us to discuss your next project.

Lever Stalk Details and Highlights

Product Description

Multifunctional lever used within an automotive steering column application.

Injection Molding Capabilities & Applied / Processes

Primary:
Tooling Design
Precision Injection
Decoration & Assembly
Custom Automation

Secondary:
Detailed Pad Printing
Automated Packaging

Equipment Used to Manufacture Part

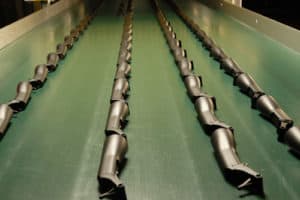

300 ton Engel, Automated Robot, Automatic Packaging into Cell Packs

Overall Part Dimensions

Length: 95mm
O.D.: Ø30.11

Tightest Tolerances

±.1mm
±0mm-30′

Material Used

Capron 8267G Nylon (PTFE)

Material Finish

Class A Surface Stipple

In process testing / inspection performed

SPC of Critical Dimensions and 100% Visual Inspection

Industry for Use

Automotive

Delivery Location

Michigan

Standards Met

Customer supplied print, 2D CAD Drawing

Product Name

Multifunctional Automotive Steering Top Column Module
