Insert Molded Automotive Sensor

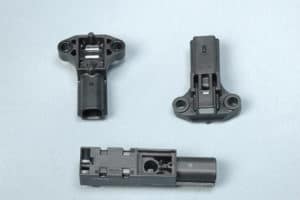

Fabrik Molded Plastics can provide a variety of injection molding processes that allow us to create custom parts for various uses. The project shown here, an electrical sensor used for an automotive application, was created using insert injection molding. This molded sensor is part of a safety system and required a high level of quality control, not only for the safety features but for final assembly as well.

Utilizing our 85 ton vertical injection molding machine, the sensor housing was formed with terminals and an overmolded magnet. We provided 100% part inspections which included continuity and hi-pot testing, as well as terminal location tests.

For more information on this custom insert injection molded project see the table below contact us to discuss your next project.

Click Here  to view a clip of this part in production.

Insert Molded Automotive Sensor Details and Highlights

Product Description

This sensor housing is used with a(n) auto application.

Injection Molding Capabilities & Applied / Processes

Primary:
Tool Design
Insert Injection Molding

  • sensor Housing w/ Terminals and overmolded magnet

Secondary:
100% Electrical Test

  • Continuity and Hi-Pot tests
  • Testing for Terminal Locations
Equipment Used to Manufacture Part

85 ton Engel – Vertical Injection

Overall Part Dimensions

Housing:
Length: 60.25mm
Width: 13.5mm
Height: 17.7mm

Terminals:
Length: 19.22mm
Width: 8.38mm
Thickness: .03mm

Tightest Tolerances

±.05mm
±1°
True Position of .1mm

Material Used

Nylon

Material Finish

Non-Critical

In process testing / inspection performed

Vision Inspection for Proper Placement of Terminals and Magnets, 100% electrical test (Continuity and Hi-Pot Tests)

Industry for Use

Automotive Safety

Delivery Location

Massachusetts

Standards Met

Customer supplied print, 2D CAD Drawing

Product Name

PTFE Electrical Housing with Over Molded Magnet and Terminals
